We are pleased to present some examples of SHINSUNG Cable carrier system applications

APPLICATIONS  -->   2

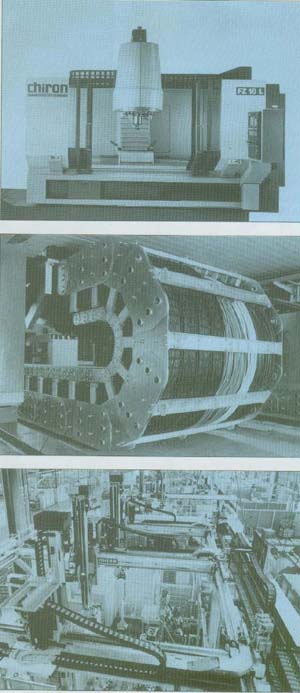

  Cable Drag Chains : Type SMO.0625
   on a machining center
   Installing variants : horizontal rolated
   by  90° - straight


   Cable Drag Chains : Type SMO.0450
   Type SSC.3200 for the separtation of
   Cable/hoses in a steel cable drag chain
   type 3200 on a ZEUS detector


   Cable Drag Chains : Type SBC.0450
   Type SMO.0625 on an automatic
   Installing variants : horizontal sliding in a
   guiding channel vertical/horizontal
   combined and vertical-suspended

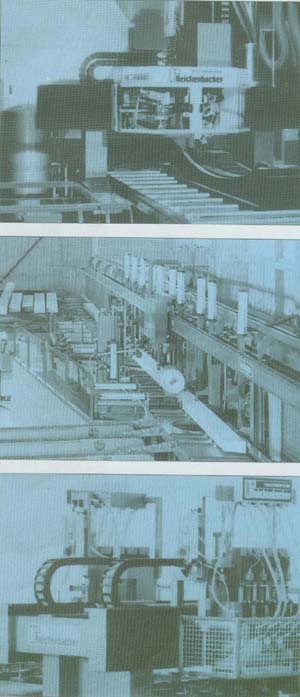

  Cable Drag Chains : Type SMO.0625
   on a five-axes milling machine
   Installing variants : horizontal
  self-supporting  running inside each other
   and vertical - upright

   Cable Drag Chains : Type SMO.0625
   on a wood working machine
   Installing variants : vertical- sliding in a
   guiding channel

  Cable Drag Chains : Type SMO.0625
   on a wood working machine
   Installing variants : vertical- self- supporting
