 Flexible Tube & Connectors







CHARACTRISTICS
Flexible conduits in according to KSC 8422(korean indus-try standard KS Mark Goods.(ksc).

Made of zinced steel strip and garvanized steel wire bradi-ng;Materials, construction,size,tolerance,test,designation and name in according to MAS
CONSTRUCTION

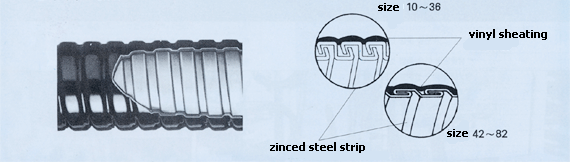

wound metal conduits with engaged profile(size 10~36)or semiinterlocked profile(size 42~82) made of high grade steel-strip with garvanized steel wire brading.

CONNECTORS
Straight connectors9ksc 8422), 90¡Æ angle connectors(KSC8459),45¡Æ angle connectors,limit switch joint connectors,cannon plug(MS connector) joint connectors,turnning con-nectors.(See p. 6,7,8,9,10,15)

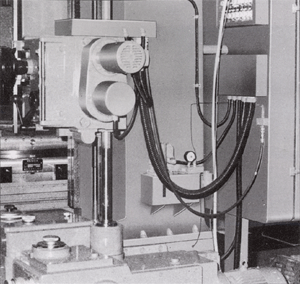

VINYL COVERED FLEXIBLE CONDUIT FOR MACHINE TOOLS

 SIZE OF TYPE VFM FLEXIBLE CONDUITS

NOMINAL
SIZE
internal
diameter
outside diameter
section
dimention
steelstrip
thickness
vinylsheathing
thickness
min
max
mm
mm
mm
mm
mm
mm
VFM-10
10.0
14.6
15.5
78.5
0.3
0.8
VFM-12
12.5
17.1
18.0
113
0.3
0.8
VFM-16
15.8
20.4
21.3
177
0.3
0.8
VFM-22
20.8
25.7
26.7
314
0.3
0.8
VFM-28
26.4
32.1
33.4
531
0.4
0.9
VFM-36
35.0
40.8
42.2
962
0.4
0.9
VFM-42
40.0
46.6
48.3
1256
0.3
1.0
VFM-54
51.3
58.6
60.3
2042
0.3
1.0
VFM-70
63.0
71.3
73.0
3116
0.4
1.3
VFM-82
78.0
87.1
88.9
4776
0.4
1.3

NOMINAL
SIZE
standard test
lengthofa
roll
weight
thread
remark
bending
radius
strength
mm
kg
m
kg/m
VFM-10
43
90
50
0.16
G-16
C-15
VFM-12
50
90
50
0.20
G-16
C-19
VFM-16
63
150
50
0.20
G-16
C-19
VFM-22
75
150
50
0.30
G-22
C-25
VFM-28
100
150
50
0.50
G-28
C-31
VFM-36
125
150
30
0.61
G-36
C-39
VFM-42
150
150
20
0.83
G-42
C-51
VFM-54
175
150
20
1.18
G-54
C-63
VFM-70
250
150
10
1.80
G-70
C-75
VFM-82
300
150
10
2.22
G-82
-
See size min, interal diameter d in P. 6,7,8,9,10 in combination with connectors.
