Flexible
Tube & Connectors
|
|
|
|
| |
| UL LISTED LIQUID TIGHT
CONDUITS |
| Korean Industry Standard KS
Mark Goods(KSC 8422) |

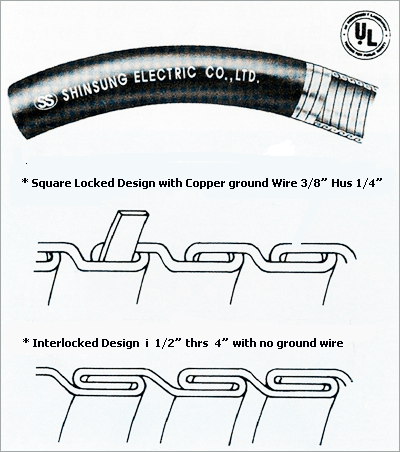

- Zinc coated steel for
greater chush resistance and corrosion proection.
- Thermoplastic sunlight
reistant cover resists heat, oil, and chemical breakdown.
- Convenient makings in feet
for easy measuremaent.
- Insttalls easily with
standard UL listed liquidtight fittings.
- Complies with UL standard
360, File No. E211626, 99NK35664
- Approved for both exposed
and concealed locations.
- Approved as and equipment
grounding conductor in sizes 3/8-1 1/4 if the total ground
is 6 ft or less and the circuit conductors are protected by
over 20 Amps for 1/2" and 60 Amps or less for
3/4"-1 1/4".
- Suitable for use in
hazardous locations per NEC Section 501-4B Class 1, Divison II
; ,Class 2, Dividion I
and II .
- Rated for
temperature ranges-5 °F
to+140 °F
(-20°
to +60°C)
- Availabie in full
range of trade sizes fom 3/8 through 4.
|
| SIZE OF TYPE SUL FLEXIBLE
CONDUITS |
|
nominal
size
|
internal
diameter
|
outside
diameter
|
section
dimention
|
steel
strip
thickness
|
|
|
length
of
a roll
|
weigth
|
thread
|
|
min
|
max
|
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
m
|
kg/m
|
|
|
|
sul-10
|
10.0
|
14.7
|
15.3
|
1.5
|
0.3
|
75
|
50
|
90
|
50
|
0.22
|
G-16
|
C-15
|
|
sul-12
|
12.0
|
17.5
|
18.1
|
1.5
|
0.3
|
80
|
50
|
90
|
50
|
0.25
|
G-16
|
C-19
|
|
sul-16
|
14.7
|
20.6
|
21.2
|
1.5
|
0.3
|
80
|
60
|
90
|
50
|
0.34
|
G-16
|
C-19
|
|
sul-22
|
20.0
|
26.5
|
27.1
|
1.5
|
0.3
|
120
|
70
|
150
|
50
|
0.67
|
G-22
|
C-25
|
|
sul-28
|
25.2
|
32.3
|
33.5
|
2.0
|
0.3
|
150
|
90
|
150
|
50
|
0.80
|
G-28
|
C-31
|
|
sul-36
|
34.5
|
41.4
|
42.4
|
2.0
|
0.3
|
180
|
130
|
150
|
30
|
0.88
|
G-36
|
C-39
|
|
sul-46
|
39.0
|
47.4
|
48.4
|
2.3
|
0.3
|
200
|
160
|
150
|
20
|
1.17
|
G-42
|
C-51
|
|
sul-54
|
49.5
|
59.4
|
60.4
|
2.3
|
0.3
|
400
|
300
|
150
|
20
|
1.51
|
G-54
|
C-63
|
|
sul-70
|
62.3
|
71.9
|
72.9
|
2.3
|
0.4
|
600
|
500
|
150
|
10
|
2.16
|
G-70
|
C-75
|
|
sul-82
|
75.2
|
85.4
|
86.4
|
2.3
|
0.4
|
850
|
750
|
150
|
10
|
3.24
|
G-82
|
-
|
|
sul-104
|
100.4
|
112.0
|
114.0
|
2.3
|
0.4
|
900
|
850
|
150
|
5
|
5.50
|
G-104
|
-
|
|
|
