Type KCP, KCPY, KCPC Flexible Conduits |
| CHARACTERISTICS |
High flexibility:high
tension:long life:waterproof:good design;many kinds of
connections: for all kinds of industrial machines, NC- and MC-
machines, machine tools, plants: usable temperature from
-10C~+70C;
(oil and chemical resistant by special order) |
| CONNECTORS |
| Straight connectors:45/90
angle connector: combination connector:cannot plug(MS
connectors) jonit connectors: limit swich joint
connectors(straight, 45/90 angle) |
| CONSTRUCTION |
wound metal conduits with
engaged profile
made of high grade steel strip, with black vinyl sheathing(gray
by special order) |

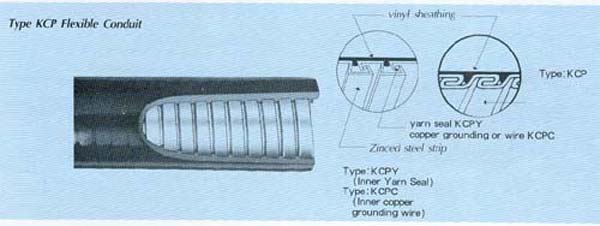

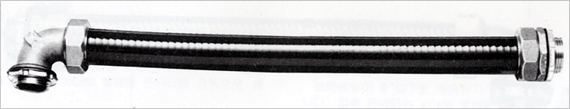

| Type KCP Flexible Conduit |
 |
| SIZE OF TYPE KCP/KCPY/KCPC
FLEXIBLE CONDUITS |
|
nominal
size
|
interal
diameter
|
outside
diameter
|
vinyl sheating
thichness
|
steel strip
thickness
|
|
min
|
max
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
KCP-10
|
KCPY-10
|
KCPC-10
|
10.0
|
14.7
|
15.3
|
1.5
|
0.3
|
|
KCP-12
|
KCPY-12
|
KCPC-12
|
12.0
|
17.5
|
18.1
|
1.5
|
0.3
|
|
KCP-16
|
KCPY-16
|
KCPC-16
|
14.7
|
20.6
|
21.2
|
1.5
|
0.3
|
|
KCP-22
|
KCPY-22
|
KCPC-22
|
20.0
|
26.5
|
27.1
|
1.5
|
0.3
|
|
KCP-28
|
KCPY-28
|
KCPC-28
|
25.2
|
32.3
|
33.5
|
2.0
|
0.3
|
|
KCP-36
|
KCPY-36
|
KCPC-36
|
34.5
|
41.4
|
42.4
|
2.0
|
0.3
|
|
KCP-42
|
KCPY-42
|
KCPC-42
|
39.0
|
47.4
|
48.4
|
2.3
|
0.3
|
|
KCP-54
|
KCPY-54
|
KCPC-54
|
49.5
|
59.4
|
60.4
|
2.3
|
0.3
|
|
KCP-70
|
KCPY-70
|
KCPC-70
|
62.3
|
71.9
|
72.9
|
2.3
|
0.4
|
|
KCP-82
|
KCPY-82
|
KCPC-82
|
75.2
|
85.4
|
86.4
|
2.3
|
0.4
|
|
KCP-104
|
KCPY-104
|
KCPC-104
|
100.4
|
112.0
|
114.0
|
2.3
|
0.4
|
|
nominal
size
|
min. bending
radius
|
strength
|
lenght
kg/m
|
weight
kg/m
|
hread
|
|
in
moving
|
in staying
|
|
mm
|
mm
|
kg
|
m
|
kg/m
|
G-Type
|
G-Type
|
|
KCP-10
|
KCPY-10
|
KCPC-10
|
75
|
50
|
90
|
50
|
0.22
|
G-16
|
C-15
|
|
KCP-12
|
KCPY-12
|
KCPC-12
|
80
|
50
|
90
|
50
|
0.25
|
G-16
|
C-19
|
|
KCP-16
|
KCPY-16
|
KCPC-16
|
80
|
60
|
90
|
50
|
0.34
|
G-16
|
C-19
|
|
KCP-22
|
KCPY-22
|
KCPC-22
|
120
|
70
|
150
|
50
|
0.67
|
G-22
|
C-25
|
|
KCP-28
|
KCPY-28
|
KCPC-28
|
150
|
90
|
150
|
50
|
0.88
|
G-28
|
C-31
|
|
KCP-36
|
KCPY-36
|
KCPC-36
|
180
|
130
|
150
|
30
|
0.88
|
G-36
|
C-39
|
|
KCP-42
|
KCPY-42
|
KCPC-42
|
200
|
160
|
150
|
20
|
0.51
|
G-42
|
C-51
|
|
KCP-54
|
KCPY-54
|
KCPC-54
|
400
|
300
|
150
|
20
|
1.51
|
G-54
|
C-63
|
|
KCP-70
|
KCPY-70
|
KCPC-70
|
600
|
500
|
150
|
10
|
2.16
|
G-70
|
C-75
|
|
KCP-82
|
KCPY-82
|
KCPC-82
|
850
|
750
|
150
|
10
|
3.24
|
G-82
|
-
|
|
KCP-104
|
KCPY-104
|
KCPC-104
|
900
|
850
|
160
|
5
|
5.50
|
G-104
|
-
|
|
|
