Flexible
Tube & Connectors
|
|
|
| |
| TYPE SSH, SSI, SIN
Flexible |
| Conduits for optical
fiber |
| Stainless flexible Tube
is installed with protective pipe of fine line, so the
curved is not only small, but also the softness is
excclent. Further, it is strong to contracted load, so is
suitable to fined line protection of optical fiber, etc.
being strong to curve or shock. |

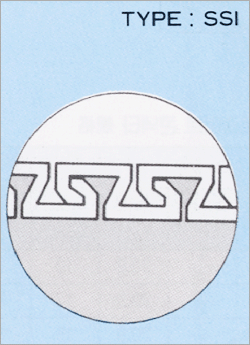

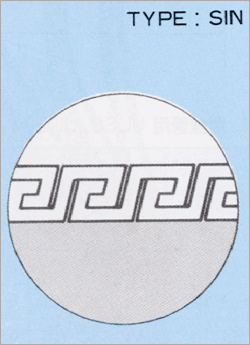

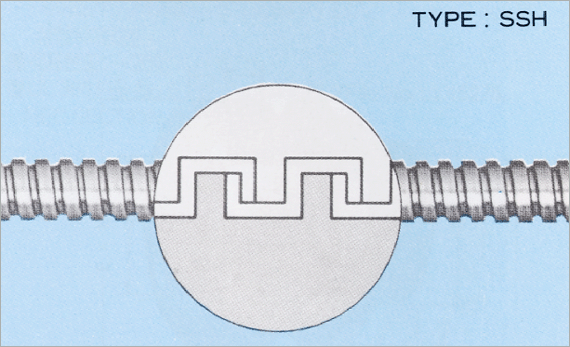

| There are types such as
SSH type and Sln type of SSI type and SIN type is formed
with doubled tructure on the drawing, it is strong and
safe to shock more than SSH type. |
It is used as protective
pipe for fine line of all types of communications, machine
for medical treatments, computer, robot and sensor, etc
..Especially it is a lot applied to the protective pipe
machine tool and machine for industrial purpose, etc. |
| SSH, SSI, SIN
Flexible Conduits |
|
TYPE GK,
SK, Flexible conduits
|
|
nominal
size
|
nominal
size
|
nominal
size
|
Interanl
diameter
|
outside
diameter
|
bending
radius
|
length of
a rool
|
remark
|
|
mm
|
mm
|
mm
|
mm
|
|
SSH-1.5
|
SSI-1.5
|
SIN-1.5
|
1.5
|
2.6
|
17
|
100
|
|
|
SSH-1.8
|
SSI-1.8
|
SIN-1.8
|
1.5
|
2.9
|
18
|
100
|
|
|
SSH-2.5
|
SSI-2.5
|
SIN-2.5
|
2.5
|
3.6
|
16
|
100
|
|
|
SSH-3.0
|
SSI-3.0
|
SIN-3.0
|
3.0
|
4.8
|
21
|
50
|
|
|
SSH-4.0
|
SSI-4.0
|
SIN-4.0
|
4.0
|
5.9
|
22
|
50
|
|
|
SSH-5.0
|
SSI-5.0
|
SIN-5.0
|
5.0
|
8.2
|
24
|
50
|
|
|
SSH-7.0
|
SSI-7.0
|
SIN7.0-
|
7.0
|
9.2
|
25
|
50
|
|
|
SSH-8.0
|
SSI-8.0
|
SIN-8.0
|
8.0
|
10.4
|
27
|
50
|
|
|
SSH-10
|
SSI-10
|
SIN-10
|
10
|
13
|
30
|
30
|
|
|
SSH-12.5
|
SSI-12.5
|
SIN-12.0
|
12.5
|
15.4
|
31
|
30
|
|
|
SSH-16
|
SSI-16
|
SIN-16
|
16
|
19.3
|
36
|
30
|
|
|
SSH-21
|
SSI-21
|
SIN-21
|
21
|
24.3
|
50
|
20
|
|
|
SSH-26.5
|
SSI-26.5
|
SIN-26.5
|
26.5
|
30.5
|
80
|
20
|
|
|
SSH-35.5
|
SSI-35.5
|
SIN-35.5
|
35.5
|
39.5
|
90
|
15
|
|
|
SSH-40.5
|
SSI-40.5
|
SIN-40.5
|
40.5
|
45.3
|
100
|
15
|
|
|
SSH-51.5
|
SSI-51.5
|
SIN-51.5
|
51.5
|
56.3
|
140
|
10
|
|
| Note :We Can Coating
Wire hraidiny, stinlege hraiding und SSH. SSI, SIN
Flexible Conduit |
|
|
|
