Flexible
Tube & Connectors
|
|
|
| |
| Korean Industry Standard
KS Goods(KSC 8422) |
HIGH-TENSIONED NON-WATER
TIGHT FLEXIBLE CONDUITS |
As made by lnterlock
method of up-to-date special engineering method, not leave
off, not loosen at all, as high-tensionad Flexible
conduits, and especially the product made with stainless
material, not rusted nor color changed,
and the product made with Zinced steel strip is light and
cheap. |

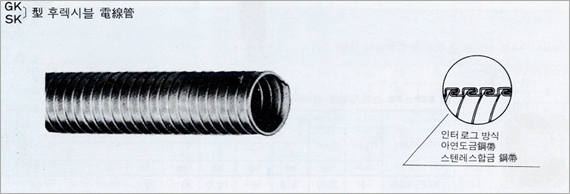

| With stainless alloy or
Zinced steel strip, product made by interlock method. |
| Used multi-purposely to
machine tools, industrial machine, ship, car, automatic
equipment such as robot, etc, parts fixed to all works of
plant, etd, moving part, ventilating part, places curbed
complicately, and it is plisble and light, not left off,
nor ursted as noninflammable materials, and very easy to
work. |
- Straight
connector
- Pipe
connecting connector
- Limit switch
connecting connector
- Cannon plug
connecting connector
- Non-watertight
connecotor such as 45¡Æ, 90¡Æ angle
connecotor,and watertight .connecotor can jointly
used,so very .convenient.
|
| TYPE GK,
SK, Flexible conduits |
|
nominal
size
|
internal
diameter
|
outside
diameter
|
bending
radius
|
length of a roll
|
weight
|
remark
|
|
mm
|
mm
|
mm
|
mm
|
kg/m
|
|
GK-10
|
SK-10
|
10.0
|
13.0
|
30
|
50
|
0.16
|
.
|
|
GK-12
|
SK-12
|
12.3
|
152
|
35
|
50
|
0.18
|
.
|
|
GK-16
|
SK-16
|
15.8
|
18.7
|
40
|
50
|
0.24
|
.
|
|
GK-22
|
SK-22
|
20.8
|
24.0
|
70
|
50
|
0.36
|
.
|
|
GK-28
|
SK-28
|
26.4
|
30.0
|
80
|
50
|
0.46
|
.
|
|
GK-36
|
SK-36
|
35.0
|
38.5
|
140
|
30
|
0.60
|
.
|
|
GK-42
|
SK-42
|
40.0
|
44.3
|
150
|
20
|
0.90
|
.
|
|
GK-54
|
SK-54
|
51.3
|
55.5
|
180
|
20
|
1.10
|
.
|
|
GK-70
|
SK-70
|
63.0
|
67.0
|
200
|
10
|
1.42
|
.
|
|
GK-82
|
SK-82
|
78.0
|
82.0
|
240
|
10
|
2.15
|
.
|
|
GK-104
|
SK-104
|
101.6
|
108.6
|
350
|
0
|
3.30
|
. |
|
|
|
