 SHINSUNG Cable
Drag Chains with Plastic Chain Bands
|
SHINSUNG drag chains with plastic chain bands can
be used whenever the cables/hoses are light, the travel is small
and the operating environment permits the use of plastics.
SHINSUNG drag chains are not only used for guiding cables, but
also hoses which may be carrying different conveyants and may be
laid side by side.
SHINSUNG plastic drag chains have been in service for many years
and are used to supply robots, machine tools, computeised
handing systems and measuring devices. |
 |
Advantages of the
SHINSUNG drag chains
with plastic chain bands: |
|
The drag chains consist of two or more plastic
chain bands which run parallel and are connected at intervals by
stays.
The stays, which are available in several types, support the
cables/hoses in holes or openings.
The chain bands are constructed in such a way that when they are
travelling in the normal direction of operation they do not
exceed a certain minimum bending it is very simple to connect
the drag chain to moving equipment. |
| ■ |
Wear on cables/hoses is eliminated
|
| ■ |
Light in weigh- because the SHINSUNG drag chain with
plastic chain bands are so light in weight,
|
| |
they are ideal for high travel even
where the length of travel is great. |
| ■ |
Easily installed- cables/hoses can be readily installed
without disconnection. |
| ■ |
Corrosion free |
| ■ |
No maintenance |
| ■ |
Deliveries ex stock |
| |
for standard components. |
| ■ |
Pleasing appearance |
| ■ |
Competitively priced |
| SHINSUNG moulded plastic drag chains
are protected by international patents and trademarks and
conform with atandard requirements |
| To specify a SHINSUNG moulded plastic
cable drag chain please provide the following information: |
| ■ |
Number and outside diameter of the cable/hoses to be installed
|
| |
(with/without end fittings)
|
| ■ |
Weight of all cables and
hoses(including hose contents) |
| ■ |
Mini. bending radius of
cable/hoses(acc.to manufacturer's specification_ |
| ■ |
Length of travel of movable unit. |
| ■ |
Maximum acceleration/deceleration |
| ■ |
Speed of travel |
| ■ |
Available mounting width |
| ■ |
Type of application drawing if
possible |
| ■ |
Working environment temperature,
humidity, radiation, etc. |

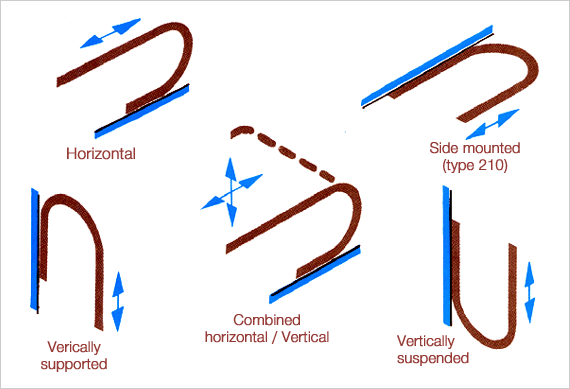

■ Typical Applications
|
| Order Code for the Cable Drag Chains |
 |
If the cross section of a stay in the
drag chain is too small because of the maximum stay width
permissible, the cables/hoses must be split into several stays.

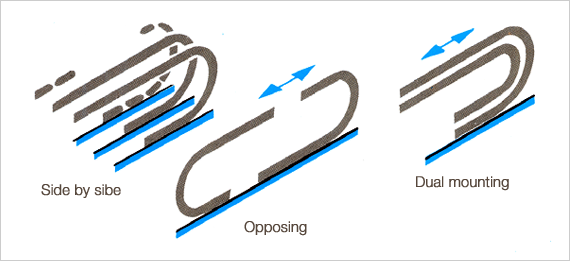

Depending on the space available, it is easy to use two or more
chains, running inside each other or in opposite directions. |
 |
 |
 |
Installing the Chain
The static fixed point of the drag chain should be in the centre
of the travel lengh.
This ensures the shortest possible lenght of chains and cable
between the fixed to the ends of the chain with countersunk heed
screws. |
| |
|
 |

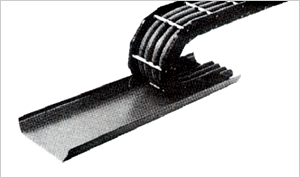

Support Tray
An even support surface is necessary to ensure correct operation
of the SHINSUNG drag chain.
If this is not available, then a support tray can be supplied.
The trays, which are made from zinc coated steel, are supplied
in standard lenghts of 3000mm, special designs on request.
|
| |
Steel Band Cover
In order to protect the cables/hoses, the drag
chains can be covered inside and out by a flat cover strip in
hitgh quality spring steel.
The steel band is guided through insertable holders inside the
drag chain.
The steel bands are fixed to the connecting brackets by holders
at the fixed point and driven end. |
Technical Data
|
| (Measurenents in mm) |
| |
BK = width drag chain
Bst = stay width
c = distance between openins in hole stays
d=cable/hose diameter
D = bore diameter in hole stays or compartment height in frame
stays.
hG = height of chain link
KR = bending radius
Lf = self-supporting cahin
length
Lk = length of drag chain
Ls = travel distance of unit
LA = length of support tray
tG = chain pitch
ST = thickness of divider
Subject to technical
modifications! |
|
Chain
Type
|
tG
|
hG
|
Bending
radii
|
Stay types
available
|
dmax
|
|
|
SBC-0650
|
65
|
55
|
75
115
145
175
220
330
|
Frame stays-with detachable bars
|
34
|
|
Frame stays-with fixed bars
|
27
|
|
Hole stay split design
|
36
|
|
|
SBC-0900
|
90
|
76
|
130
150
190
245
300
385
|
Frame stays-with detachable bars
|
52
|
|
Frame stays-with fixed bars
|
42
|
|
Solid frame stay-with sliding
insert
|
42
|
|
Hole stay-split design
|
48
|
|
|
|

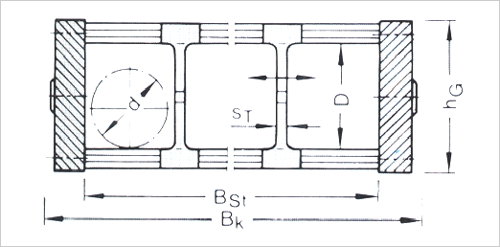

Fram stay-with detachable bars
Stay with deatschable bars allow easy insertion, addition and
replacement of cables and hoses which, from experience, is often
preferable.
This type of stay is used mainly where the distance of travel is
short and speed of travel slow.
There are no screw connections. Detach the bars by turning 90°
Low priced and available ex stock in standard widths. |
|

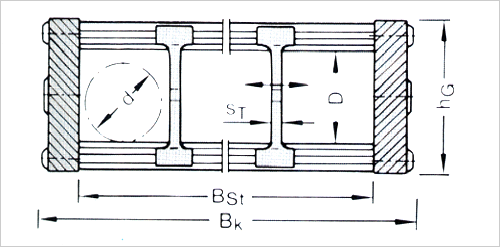

Fram stay-with fixed bars
For medium lengths of travel and travel sppeds.
Adjustble dividers in all types of frame stay enable the
cables/hoses to be divided.
which prevents friction between them.
Available ex stock in standard widths. |
|

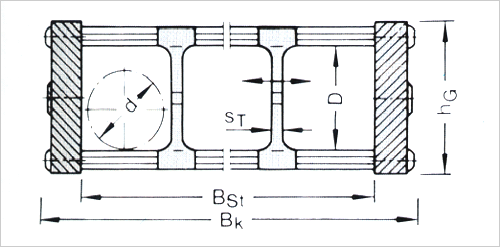

Solid frame stay-with sliding cleat
(Only for chain type 0900k)The solid frame stay is used where
the maximum stay width of the above-mentioned frame stays is
exceeded.
The soft metal profile with the plastic profile cleat inserted
to protect the cables/hoses guarantees a high stabikity level of
the drag chain. Available ex stock in standard widths. |
|
|

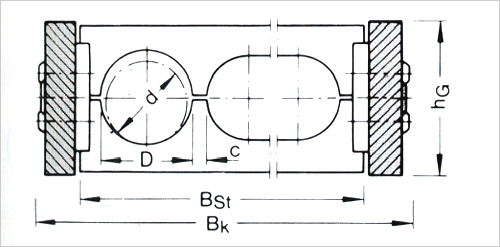

Hole stay-split design
Hole stays ensure optimal laying of cables on the neutal axis of
the drag chain.
The split design makes the insertion of cables simple even where
hoses with fixed fittings/steel reinforcements are used.
Separate hose stay is designed for each requirment. |
|
