■ CHARACTERISTICS
|
| Improved connectors than KSC 8459(Korean industry stan-dard KS
Mark Goods);screw insert made of stainless steel and screw
holder made of plastic;for fiexible conduit Type VFM, WFM in
according to KSC;many kinds of threads, G-Type thread, C-Type
thread,PF-thread, thread(PF1/2)for limit switch, thread for
cannon plug(MS connector);wide application. |
■ SUITABLE FLEXIBLE CONDUITS
|
| Flexible conduitsType KCP,CPB,CPC(see 11,12,13) |

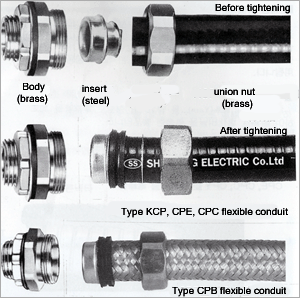

■ SETTING
|
1.Cut the flexible conduit by special knife at right angle to
conduit axis without flash.(Before cutting Type WFM flexible
conduit, wind vinyl tape some times on the conduit, take away
the vinyl tape after cutting, cut off the flashs and press the
end df the wire brading into inside.)
2.Push the union nut over the flexible conduit with atten-tion
of the direction of the union nut.
3.Screw the holder over the flexible conduit.
4.Screw up the insert in the flexible conduit completely ...
5.Adjust the position of the holder, and screw up the body and
union nut.
6.Clamp the body in the vise staying the flexible conduit in the
upperside and tighten the union nut with a span-ner |

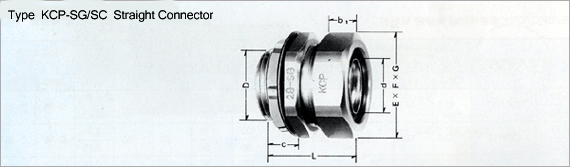

| Type KCP-SG/SC Straight Connector |
■ MATERIAL
Brass(SG) and Diecasting(SGZ)
|
 |
■ SIZE OF TYPE VFM FLEXIBLE CONDUITS
|
|
nominal
size
|
thread D
|
min
internal
diameter
|
effective
thread
length
|
union
nut
width
|
|
G-Type
thread
|
PF-
thread
|
outside
dameter
|
d
|
c
|
b1
|
|
inch
|
mm
|
mm
|
mm
|
mm
|
|
KCP-SG10
|
KCP-SGZ10
|
G-16
|
1/2
|
20.9
|
8.8
|
13.0
|
10.0
|
|
KCP-SG12
|
KCP-SGZ12
|
G-16
|
1/2
|
20.9
|
10.8
|
13.0
|
10.0
|
|
KCP-SG16
|
KCP-SGZ16
|
G-16
|
1/2
|
20.9
|
13.6
|
13.0
|
11.0
|
|
KCP-SG18
|
KCP-SGZ18
|
G-16
|
1/2
|
20.9
|
14.5
|
13.0
|
11.0
|
|
KCP-SG22
|
KCP-SGZ22
|
G-22
|
3/4
|
26.4
|
19.3
|
13.0
|
12.0
|
|
KCP-SG28
|
KCP-SGZ28
|
G-28
|
1
|
33.2
|
24.0
|
16.5
|
15.0
|
|
KCP-SG36
|
KCP-SGZ36
|
G-36
|
1 1/4
|
41.9
|
33.3
|
18.0
|
16.0
|
|
KCP-SG42
|
KCP-SGZ42
|
G-42
|
1 1/2
|
47.8
|
37.8
|
18.0
|
19.2
|
|
KCP-SG54
|
KCP-SGZ54
|
G-54
|
2
|
59.6
|
48.5
|
21.0
|
20.9
|
|
KCP-SG70
|
KCP-SGZ70
|
G-70
|
2 1/2
|
75.1
|
61.5
|
22.0
|
24.0
|
|
KCP-SG82
|
KCP-SGZ82
|
G-82
|
3
|
87.8
|
74.0
|
26.0
|
26.0
|
|
nominal
size
|
total
length
|
opposite
angle
distance
|
opposite
angle
distance
|
no-
of
angle
|
weight
|
remark
|
|
L
|
E
|
F
|
G
|
|
mm
|
mm
|
mm
|
mm
|
g
|
|
KCP-SG10
|
KCP-SGZ10
|
29.0
|
23.0
|
25.7
|
6
|
65
|
|
|
KCP-SG12
|
KCP-SGZ12
|
29.0
|
26.0
|
28.7
|
6
|
75
|
|
|
KCP-SG16
|
KCP-SGZ16
|
31.0
|
30.0
|
32.8
|
6
|
95
|
|
|
KCP-SG18
|
KCP-SGZ18
|
31.0
|
34.0
|
38.5
|
6
|
110
|
|
|
KCP-SG22
|
KCP-SGZ22
|
33.5
|
36.0
|
40.0
|
6
|
125
|
|
|
KCP-SG28
|
KCP-SGZ28
|
37.5
|
44.0
|
48.0
|
6
|
185
|
|
|
KCP-SG36
|
KCP-SGZ36
|
42.0
|
55.5
|
58.5
|
8
|
290
|
|
|
KCP-SG42
|
KCP-SGZ42
|
46.0
|
60.8
|
65.0
|
8
|
430
|
|
|
KCP-SG54
|
KCP-SGZ54
|
51.5
|
74.4
|
80.3
|
8
|
600
|
|
|
KCP-SG70
|
KCP-SGZ70
|
61.0
|
85.5
|
95.5
|
8
|
950
|
|
|
KCP-SG82
|
KCP-SGZ82
|
74.0
|
102.3
|
110.5
|
8
|
1400
|
|
|
