Cable Drag Chains

Major:Appled to machine tools, industrial machine. Robot for industrial Purpose.   Application SHINSUNG fiexble conduit, SCF is an extension of our range of energy supply products based on many years of experience in this field. SCF flexible conduit is used to guide flexible cables/hoses and has proved succe-ssful in machine and apparatus construction. handling systems and robots. SHINSUNG flexibe conduit, SCF consists of stainless steel segments and frames made rom polymide reinforced with glass fibers. The segments and frames are assembled to the required length which therefore eliminates the need to order to every individual requirement and therefore allows stock holding. partly damaged flexible conduit does not need to be replaced but can easily be repaired! SCF is available with different bending radius. The bending line lies along the neutral axis of the flexible conduit so that the movenment of the cables and hoses relative to the SCF is minimal. The cables/hoses which are housed within the SCF are protected by the plastic frames. The use of offers the following advantage: □ Cables/hoses protected from dirt and chips □ Long life of cables/hoses due to protection within plastic frames □ Space required is minimal □ Low noise factor □ Safe □ Easy essembling □ Maintenance free □ Good appearance □ Ordering to contract unnecessary due to ability to hold stock The following details are required to prepare a technical quotation: □ Number and extemal diameter of cables/hoses to be housed (note fittings) □ Weight of cableks and hoses (incl.hoses contents) □ Smallest permissible bending rad. of cables/hoses (as.manufacturers' specif.) □ Length of travel □ Maximum acceleration/deceleration □ Type of application (drawing if possible) □ Type of connectors □ Working environment Typical Applications Energy flexible conduit can be used for horizontal, vertical and combined hori-zontal/vertical movements. ■ Order Code for the SCF if the cross-section of the flixible conduit is not sufficient carry the cable/hoses then the latter must be divided. Depending on the space available, the flexible conduits can be arranged side by side, one inside another or running in opposite directions. SHINSUNG type 055, 085 and 115 SCF which are used in appli-cations where there is an accumuation of chi-ppings, can be fitted with protective guards made in stainless steel. The connecting slots of the plastic frames are protected from dirt by the guards.

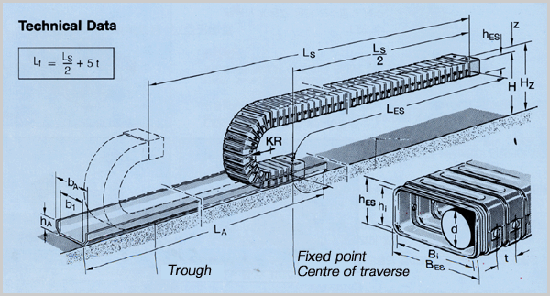

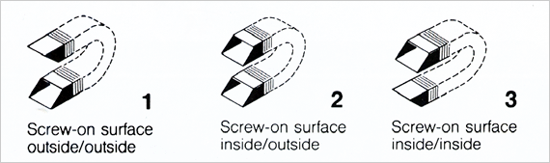

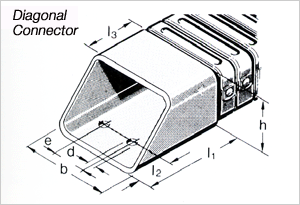

To guarantee optmum operation of the SCF flexible conduit, a clean flat surface should be provided. If this is not possible than a trough is required. The fixed point should be at the centre of traverse thereby giving the shortest connection between the fixed point and the moving unit. Length of the flexible energy conduit: Connection height: Length af trough: Connection height: Table of Dimension : We reserve the right to make technical alterations! SCF Type 055 060 overall width BES mm 62 60 overall height hES mm 38 52 overall width Bi mm 45 36 inside heigh hi mm 25 40 max.cable/hose Ø dmax mm 20 32 Conduit pitch t mm 20 20 bending radius KR mm 65 100 150 100 curve dimension L3 mm 405 515 675 515 connection height H mm 181 258 368 272 permissible self-supporting conduit length Lf m 1,2...1,5 . weight kg/m 1,25 1,6 trough dimensions ZA mm 230 265 315 270 b1 mm 65 65 bA mm 80 80 hA mm 20 20 SCF Type 085 115 overall width BES mm 92 123 overall height hES mm 52 67 overall width Bi mm 76 102 inside heigh hi mm 38 52 max.cable/hose Ø dmax mm 34 47 Conduit pitch t mm 20 25 bending radius KR mm 100 150 200 250 140 225 300 curve dimension L3 mm 515 675 830 985 690 960 1200 connection height H mm 272 382 492 602 375 562 727 permissible self-supporting conduit length Lf m 1,5...2,0 2,0...2,5 dependent on addintional load weight kg/m 1,9 2,6 trough dimensions ZA mm 300 350 390 450 385 470 545 b1 mm 100 135 bA mm 115 150 hA mm 20 20 SCF Type 120 175 overall width BES mm 127 190 overall height hES mm 86 94 overall width Bi mm 100 162 inside heigh hi mm 70 72 max.cable/hose Ø dmax mm 64 65 Conduit pitch t mm 25 30 bending radius KR mm 155 200 185 250 350 curve dimension L3 mm 740 880 830 1035 1400 connection height H mm 427 526 501 644 864 permissible self-supporting conduit length Lf m 2,0...3,0 weight kg/m 3,8 5,2 trough dimensions ZA mm 410 455 485 550 650 b1 mm 135 200 bA mm 150 215 hA mm 20 20 When construction the SCF conduit, please note the " Guidelines for laying cable/hoses in flexible conduit" SCF flexible conduit can be used for horizontal installations without extra fittings with the range of permissible unsupported lengths. if these are exceeded of for other types of installation, please consult our Engineering Department. Connector Dimensions for SCF Flexible Conduit Applications with diagonal connectors the connetors can be combined and, if necessary, can be changed at a later stage. Type of connection requried should be given when ordering! type b h e d l1 l2 l3 SCF-055 55 36 22 6.5 44 12.5 20 SCF-060 55 52 22 6.5 44 12.5 20 SCF-085 85 50 50 6.5 70 15.0 32 SCF-115 117 66 70 8.5 84 17.5 34 SCF-120 120 84 70 8.5 82 17.5 48 SCF-175 182 92 100 10.5 100 22.5 45 Standard Connectors   type b h e d l1 l2 SCF-055 55 36 22 6.5 20 8.5 SCF-060 - - - - - - SCF-085 85 52 50 6.5 25 10.0 SCF-115 116 68 65-70 8.5 35 10.0 SCF-120 120 84 70 8.5 35 12.5 SCF-175 182 92 100 10.5 40 15.0 Cross Flange Connectors   type b h e d l1 l2 SCF-055 55 35 90 75 6.5 20 SCF-060 - - - - - - SCF-085 85 50 120 105 6.5 25 SCF-115 116 64 160 140 8.5 35 SCF-120 - - - - - - SCF-175 182 90 226 200 10.5 40 High Flange Connectors   type b h h1 eb eh d l SCF-055 55 35 70 18 55 6.5 20 SCF-060 - - - - - - - SCF-085 85 50 85 45 70 6.5 25 SCF-115 116 64 110 60 90 8.5 35 SCF-120 - - - - - - - SCF-175 182 90 136 95 110 10.5 40
