Cable Drag Chains
MINI Cable Drag Chains
mini drag chains type 0130 and 0180 are fitted to
equipment in the following industrial sectors and many other: Measuring
and inspection, installation and handling systems, medical equipment,
textile-print-and packing, model construction, laboratory and computer
techniques.
Their use ensures a safe and orderly guidance of supply lines and hereby
increasing is life.
These drag chains are made from a glass fibre reinforced plastic material
an can be supplied in 4 band widths 3 bending radii. |
 |
- Smallest construction for minimum available
spaces
- Smallest drag chain that can be opened on both sides
- thereby easy fitting and changing of supply lines
- it is possible to retrofit drag chains to already installed supply
line
- no restriction on side limits
- The opened connecting stays remain in contact with chain band
- Minimum weight-therefore requires only slow
accerelation
- Largest widths and radii alternatives
- Easy to install by means of connecting plate
- Variety of color and smart design gives a pleasant optical
total impression of equipment fitted
|
|
Dimensions in mm
 Chain
material : KS/PA
glass fibre reinforced special materials are available where
required. |
Standard
colour : black
Upon customer request : orange, grey, yellow, White , red, green,
blue, yellow-black |
Maximum
temperatures : -20 +135 íC
Where continuous temperatures
fall either below minimum or
exceed maximum, please refer to us. |
| |
|
Determination of chain length: |
| |
|
|
|
Rounded off to chain division tG |
| |
|
Self-supporting length: |
|
|
|
|
|
|
Chain type
|
SMI-0130
|
SMI-0180
|
|
Chain division tG
|
13
|
18
|
|
Chain link height hG
|
12,5
|
18
|
|
Bening radius KR
|
20
|
28
|
37
|
28
|
37
|
50
|
|
Arc length LB
|
115
|
140
|
168
|
160
|
188
|
229
|
|
Arc overhang ÜB
|
52
|
60
|
69
|
73
|
82
|
95
|
|
Connetting height Hmin
|
52,5
|
68,5
|
86,5
|
74
|
92
|
118
|
|
Self-supporting length Lf
(for maximum applied load)
|
0,5m
(0,4 kg/m)
|
0,7m
(1 kg/m)
|
|
|

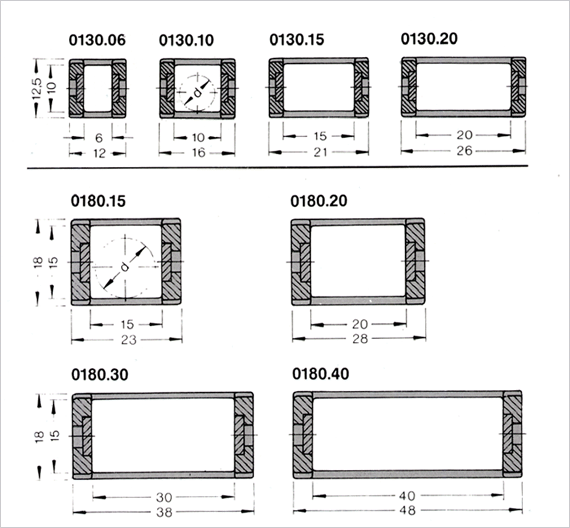

Chain type
|
Ducting Ø
|
weight in kg/m
|
|
0130 .06
|
5
|
0,132
|
|
0130 .10
|
8
|
0,140
|
|
0130 .15
|
8
|
0,150
|
|
0130 .20
|
8
|
0,160
|
|
0180.15
|
13
|
0,238
|
|
0180.20
|
13
|
0,250
|
|
0180.30
|
13
|
0,275
|
|
0180.40
|
13
|
0,300
|

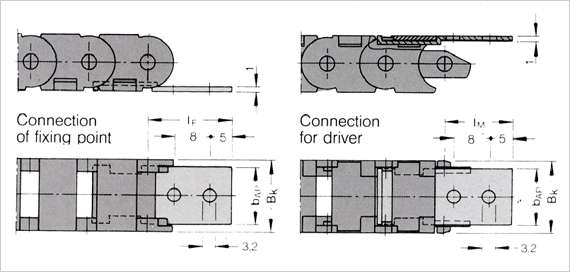

Chain
connections
|
Chain type
|
lF
|
lM
|
bAP
|
|
0130
|
18
|
15
|
Bk- 3,5
|
|
0180
|
16
|
13
|
Bk-5,5
|
The static fixed point of the drag chain must be placed
the centre of the shortest possible and most economical
chain lenght between the fixed and moving points.
The chain must rest on an even surface, if not, chain must
be located in a trough. |
|
|
|
