Flexible
Tube & Connectors
| |
| Type CPE(Heat
Resistant) Flexible Conduits |
This fittings can be used as
accessories for conduits(for wring) in the lst class dangerous
place estblished by the labour safety and health rule No.140
article and the technicnt of the industrial safeth laboratory of
the Sabour Ministry (the point of factory electric equipments
explosion-prevention and gas/steam explosion-prevention)
- The 1st dangerous places
are the places, where it can be dangerous in normal
situation, and the following places.
(1)Where explosive gases are filled in normal situation and
it can be dangerous.
(2) Where explosive gases are often filled by repair,
maintenance and leaking and it can be dangerous.
|
1. This fittings are passed on
explosion-preventable electric machines and equipment test of
the industrial safety laboratory of the labour Ministry in Japan
and can be used without any anxiety
2. High-flexibility;Easy setting in narrow and complicated
places.Seamless metal flexible conduits ard used. |

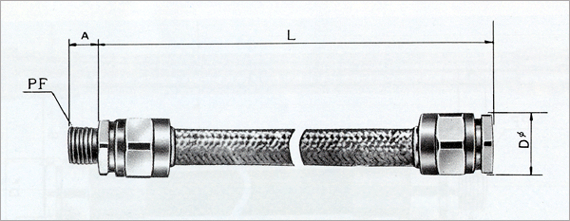

| SIZE OF
TYPE EXK FLEXIBLE FITTINGS |
unit : mm |
|
type
|
L
|
intenal diamether of tube
|
D%
|
A
|
PF
|
|
EXK-0516
|
500
|
13.0
|
37
|
17
|
PF 1/2
|
|
EXK-1016
|
1000
|
|
EXK-0522
|
500
|
19.5
|
43
|
17
|
PF
3/4
|
|
EXK-1022
|
1000
|
|
EXK-0528
|
500
|
25.8
|
56
|
21
|
PF
1
|
|
EXK-1028
|
1000
|
|
EXK-0536
|
500
|
32.7
|
65
|
21
|
PF
11/4
|
|
EXK-1036
|
1000
|
|
EXK-0542
|
500
|
38.0
|
73
|
26
|
PF
11/2
|
|
EXK-1042
|
1000
|
|
EXK-0554
|
500
|
52.5
|
89
|
26
|
PF
2
|
|
EXK-1054
|
1000
|
|
EXK-0570
|
500
|
64.8
|
105
|
31
|
PF
21/2
|
|
EXK-1070
|
1000
|
|
|
