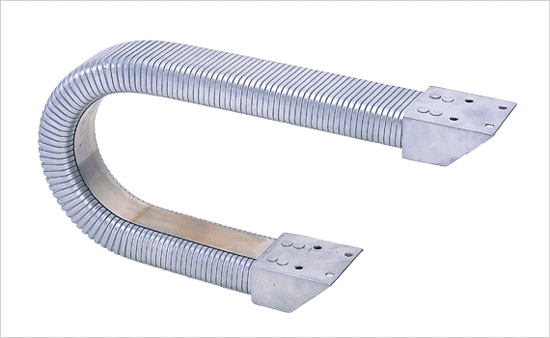

The SHINSUNG Cable Duct are used for the guide
of cables and hoses to movable consumers.
Cable Duct guide hoses consist of fiexible metal spiral tubes
which are cantilevered in certain lengths by in-serted,
Pretensioned special steel bands, Energy guide hoses Cables Duct

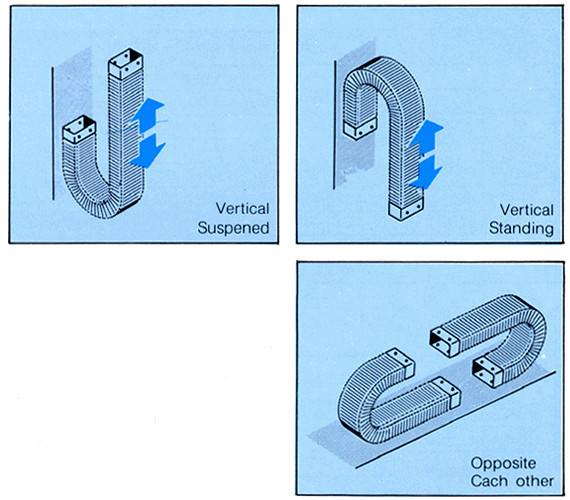

can be used for horizontal, for vertical and for combined
horizontal-vertical motions.
The use at a movable consumer re-quires scarcely constructive
precondi-tions. |
 |
| ■ Order code for the Cable Duct |

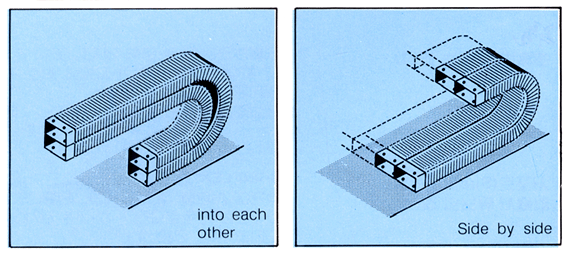

| Should the section of an energy guide hose be
in-sufficient for the install-ation of cables/hoses, the lines may
be divided among several Cable Duct energy guide hoses. |
 |
|
| |
| ■ Table of Dimensions: Further dimensions
available upon request |
|
SHINSUNG_TYPE
|
030.1
|
050.1
|
050.2
|
|
Cable duct width
|
mm
|
30
|
50
|
50
|
|
Cable duct height
|
mm
|
30
|
30
|
50
|
|
Cable inside width
|
mm
|
26
|
45
|
45
|
|
Cable inside height
|
mm
|
24
|
24
|
44
|
|
Bending rading KR
|
mm
|
80
|
75
|
100
|
150
|
110
|
150
|
200
|
|
Circular dim LB
|
mm
|
330
|
310
|
415
|
620
|
455
|
620
|
830
|
|
Built-in height H
|
mm
|
190
|
180
|
230
|
330
|
270
|
350
|
450
|
|
Permissible unsupported, hose Length
Lf2
|
mm
|
|
1000-1500
|
|
Cable duct shortening LVK
|
mm
|
45
|
45
|
80
|
|
Cable duct wieght without joining
pieces
|
mm
|
1.2
|
2.0
|
2.5
|
|
Length allowance for support tray
|
mm
|
220
|
215
|
250
|
325
|
275
|
335
|
410
|
|
Tray inside width b1
|
mm
|
40
|
65
|
65
|
|
Tray total width
|
mm
|
55
|
80
|
80
|
|
Tray height hA
|
mm
|
20
|
20
|
20
|
|
SHINSUNG_TYPE
|
080.1
|
080.2
|
080.3
|
110.1
|
|
Cable duct width
|
mm
|
85
|
85
|
85
|
115
|
|
Cable duct height
|
mm
|
45
|
60
|
85
|
60
|
|
Cable inside width
|
mm
|
80
|
80
|
80
|
109
|
|
Cable inside height
|
mm
|
40
|
54
|
78
|
53
|
|
Bending rading KR
|
mm
|
100
|
150
|
200
|
150
|
200
|
250
|
200
|
150
|
200
|
250
|
|
Circular dim LB
|
mm
|
415
|
620
|
830
|
620
|
830
|
1035
|
830
|
620
|
830
|
1035
|
|
Built-in height H
|
mm
|
245
|
345
|
445
|
360
|
460
|
560
|
485
|
360
|
460
|
560
|
|
Permissible unsupported, hose Length
Lf2
|
mm
|
depending on loading 1500-2000
|
|
Cable duct shortening LVK
|
mm
|
70
|
95
|
135
|
95
|
|
Cable duct wieght without joining
pieces
|
mm
|
3.0
|
3.5
|
5.1
|
4.8
|
|
Length allowance for support tray
|
mm
|
280
|
350
|
425
|
355
|
430
|
505
|
445
|
375
|
450
|
525
|
|
Tray inside width b1
|
mm
|
100
|
100
|
100
|
135
|
|
Tray total width
|
mm
|
115
|
115
|
115
|
150
|
|
Tray height hA
|
mm
|
20
|
20
|
20
|
20
|
|
SHINSUNG_TYPE
|
110.2
|
110.3
|
170.1
|
170.2
|
170.3
|
|
Cable duct width
|
mm
|
115
|
115
|
175
|
175
|
175
|
|
Cable duct height
|
mm
|
80
|
115
|
80
|
110
|
175
|
|
Cable inside width
|
mm
|
109
|
109
|
170
|
170
|
170
|
|
Cable inside height
|
mm
|
73
|
108
|
72
|
102
|
167
|
|
Bending rading KR
|
mm
|
200
|
250
|
350
|
300
|
190
|
250
|
350
|
250
|
300
|
400
|
365
|
|
Circular dim LB
|
mm
|
830
|
1035
|
1450
|
1245
|
790
|
1035
|
1450
|
1035
|
1245
|
1660
|
1510
|
|
Built-in height H
|
mm
|
4800
|
580
|
780
|
715
|
460
|
580
|
780
|
610
|
710
|
910
|
905
|
|
Permissible unsupported, hose Length
Lf2
|
mm
|
depending on loading 1500-2500
|
|
Cable duct shortening LVK
|
mm
|
125
|
180
|
125
|
175
|
245
|
|
Cable duct wieght without joining
pieces
|
mm
|
5.3
|
6.6
|
7.2
|
8.2
|
9.2
|
|
Length allowance for support tray
|
mm
|
460
|
535
|
685
|
630
|
445
|
535
|
685
|
550
|
625
|
775
|
755
|
|
Tray inside width b1
|
mm
|
135
|
135
|
200
|
200
|
200
|
|
Tray total width
|
mm
|
150
|
150
|
215
|
215
|
215
|
|
Tray height hA
|
mm
|
20
|
20
|
20
|
20
|
20
|
Subject to alternation!
| 1) Bending radius |
The bending radius depends in general on the engineering
condutions, for it is determination attend to the minumum
requried bending radius specitied by the manufacrtures of the
sevice lines. specified bending radius specitied by the
manufacprodation conditioned allowancesi-20 -30mm |
| 2) permissible unsupported cable
length Lf1 |
Cable duct energy guide hoses can be used in horizontal
applications within the stated permissible unsupported lengths
without additional supports.
If the permissible unsupported length of the energy guide hose
is exceeded, the required stroke can possibly be reached by a
support, this does reduce, however, the permissible
unsupported length L1 by abt. 20%! |
| ■ Cable Duct connection |
| The fixed point connection should be ensued in the centre of
the travel stroke as this produces the shortest connection
between fixed point and movable consumer and thus the most
economic length of energy guide hose and line. |

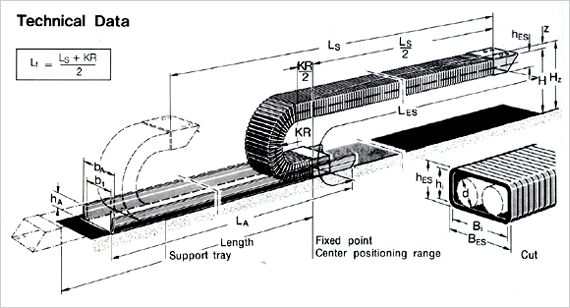

| Straight-line length of energy guide Cable Duct |
 |
| Circular dim. LB(table of dimensions) |
| Purchase-order length of energy guide cable duct |
 |
| Cable shorting LVK(table of dimensions) |
| Required clear height : |
 |
| Prestress z=50mm |
| ■ Support tray |
| For the support of the Cable Duct energy guide cable, an
even surface or possibly a support tray will be required. |
| Length of support tray : |
 |
Length allowance Za(table of dimensions)
sheet thickness : 1.5 mm
Max.part length :3000mm |
| Number and outside diameter of the cables/hoses to be
installed (attend to fixed armatures) Weight of cables or
hoses including of hose content required minumum bending
radius of cables or hoses as per manufacturer's statement |
Travel of the consumer
Max.acceleration or deceleration
Speed of travel Frequency of travel
Available mounting width
Installation variant dwg if possible
Type of connection
Working environment |

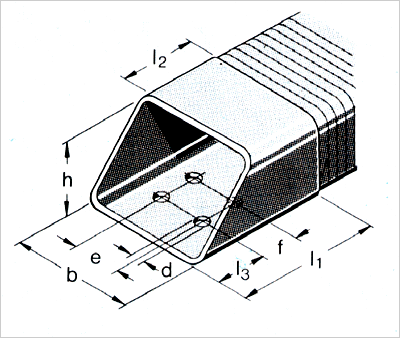

| ■ Fitting dimension for Energy guide cable
Duct |
|
|
|
SHINFLEX
|
b
|
h
|
e
|
f
|
d
|
l1
|
l2
|
l3
|
|
030.1
|
34
|
34
|
0
|
40
|
9
|
120
|
60
|
10
|
|
050.1
|
54
|
34
|
20
|
40
|
9
|
120
|
60
|
10
|
|
050.2
|
54
|
54
|
20
|
40
|
9
|
120
|
60
|
10
|
|
080.1
|
90
|
50
|
50
|
40
|
9
|
120
|
60
|
10
|
|
080.2
|
90
|
65
|
50
|
40
|
9
|
120
|
60
|
10
|
|
080.3
|
90
|
90
|
50
|
40
|
9
|
120
|
60
|
10
|
|
110.1
|
120
|
65
|
80
|
40
|
9
|
120
|
60
|
10
|
|
110.2
|
120
|
85
|
80
|
40
|
9
|
120
|
60
|
10
|
|
110.3
|
120
|
120
|
80
|
40
|
9
|
120
|
60
|
10
|
|
170.1
|
180
|
85
|
140
|
40
|
9
|
120
|
60
|
10
|
|
170.2
|
180
|
115
|
140
|
40
|
9
|
120
|
60
|
10
|
|
170.3
|
180
|
180
|
140
|
40
|
9
|
120
|
60
|
10
|

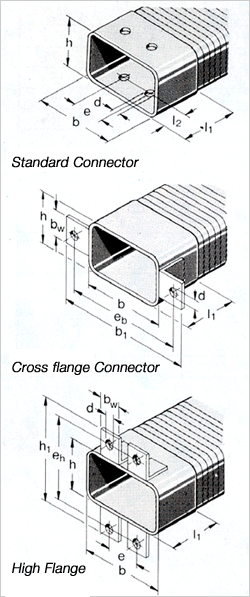

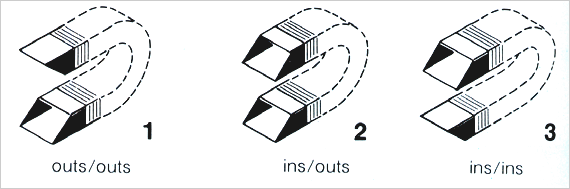

| ■ Diagnal Connector |
| Applications with diagonal connectors The Connectors can be
conbined and, if necessary, can be changed at a later stage.
Type of connection required should be given when ordering! |
|
|
|
SHINFLEX
|
b
|
h
|
e
|
eb
|
eh
|
d
|
l1
|
l2
|
bw
|
b1
|
h1
|
|
030.1
|
34
|
34
|
-
|
56
|
56
|
9
|
60
|
20
|
20
|
74
|
74
|
|
050.1
|
54
|
34
|
20
|
76
|
56
|
9
|
60
|
20
|
20
|
94
|
74
|
|
050.2
|
54
|
54
|
20
|
76
|
76
|
9
|
60
|
20
|
20
|
94
|
94
|
|
080.1
|
89
|
49
|
50
|
111
|
71
|
9
|
75
|
20
|
20
|
129
|
89
|
|
080.2
|
89
|
64
|
50
|
111
|
86
|
9
|
75
|
20
|
20
|
129
|
104
|
|
080.3
|
89
|
89
|
50
|
111
|
111
|
9
|
75
|
20
|
20
|
129
|
129
|
|
110.1
|
119
|
64
|
80
|
141
|
86
|
9
|
95
|
20
|
20
|
159
|
104
|
|
110.2
|
119
|
84
|
80
|
141
|
141
|
9
|
95
|
20
|
20
|
159
|
124
|
|
110.3
|
119
|
119
|
80
|
141
|
141
|
9
|
95
|
20
|
20
|
219
|
124
|
|
170.1
|
179
|
84
|
140
|
201
|
106
|
9
|
95
|
20
|
20
|
219
|
154
|
|
170.2
|
179
|
114
|
140
|
201
|
136
|
9
|
95
|
20
|
20
|
219
|
154
|
|
170.3
|
179
|
179
|
140
|
201
|
201
|
9
|
95
|
20
|
20
|
219
|
219
|
| Front-flange joining Connector as per
customer's designation are also available. Those pieces can be
combined The requested type of connection and its variant is
to be stated with the order. |
|
|
